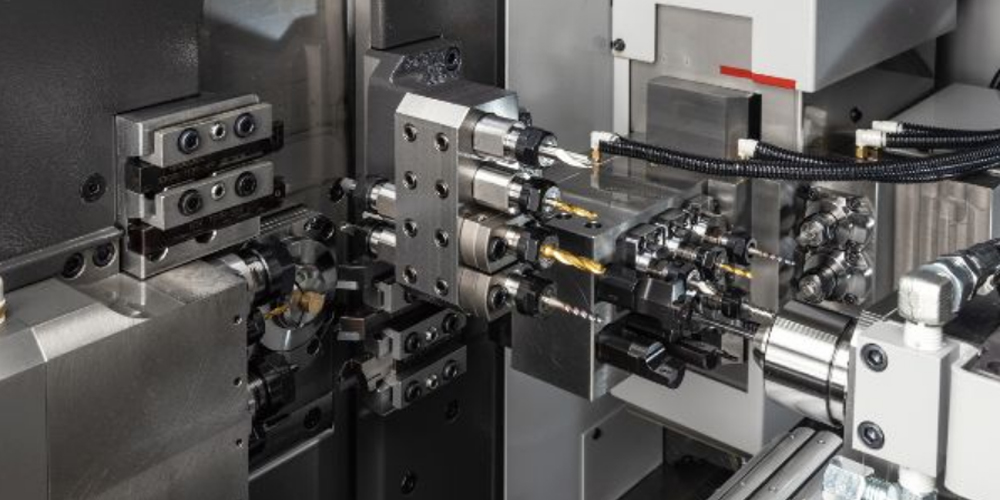

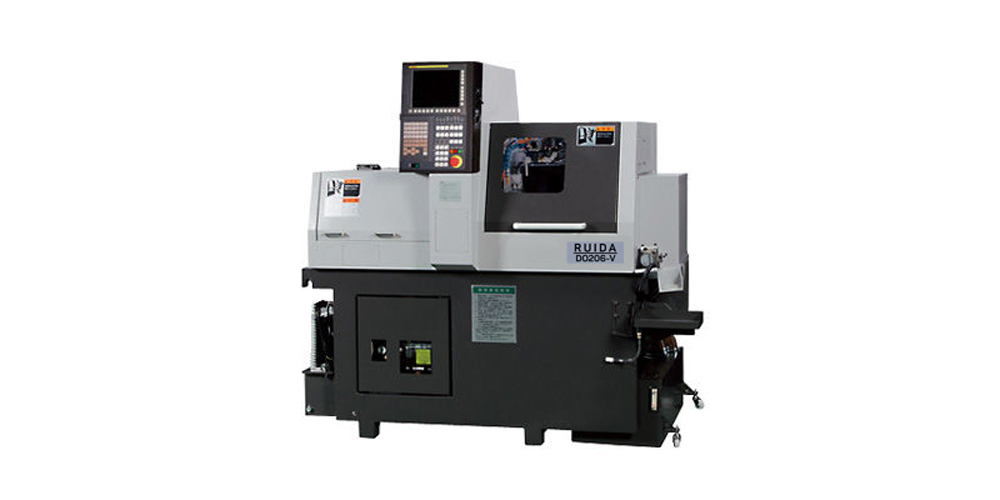

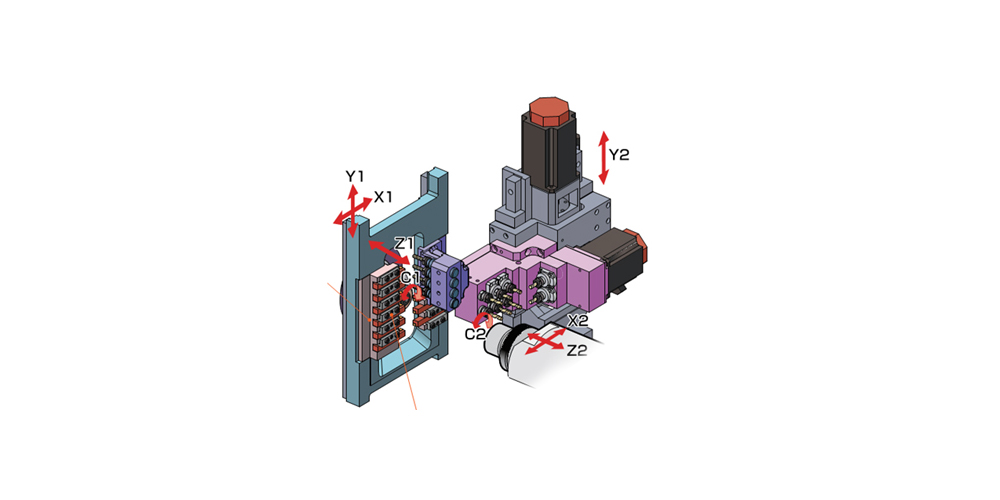

The combination of back spindle and back tool post enables the simultaneous operation of back side machining with main side machining. Compact machine with back tool post with Y axis.
- Enhances machining capabilities by high output built-in motor equipped on the main and back spindle
- Reduces cycle time
- Fixed type chute reduces the work collection time to one second
- Optimizes the slide movement and live tools start-up operation to reduce the idle time
- Live tool of front tool post (option) with max. speed of 10,000min-1 reduces the cycle time for small hole drilling
- Guide-bushing type or guide-bushless type is selectable according to the workpiece (option)
- Interference check function detects interference before it occurs, and the machine is stopped by alarm
- The function turns off each axis servo motor, pumps (coolant, lubrication), fans, lights, and NC screen to reduce standby power while ensuring machining accuracy
- Automatic programming software is provided as standard.
Feature
|
Max. machining dia. |
Ø 20 mm |
|
Main spindle speed |
Max. 10 000 min-1 (Rated speed: 8 000 min-1) |
|
Back spindle speed |
Max. 12 000 min-1 (Rated speed: 8 000 min-1) |
|
Tool storage capacity (standard) |
27 |
|
Rapid traverse rate |
36 m/min (X2/Z2), 32 m/min (Y1/Z1), 24 m/min (X1), 15 m/min (Y2) (Y2: 6-axis only) |
|
Main spindle motor |
3.7 / 5.5 kW |
|
Back spindle motor |
2.2 / 3.7 kW |
|
Width x depth x Height |
1 750 x 1 055 x 1 700 mm |
|
Weight |
1 850 kg |
