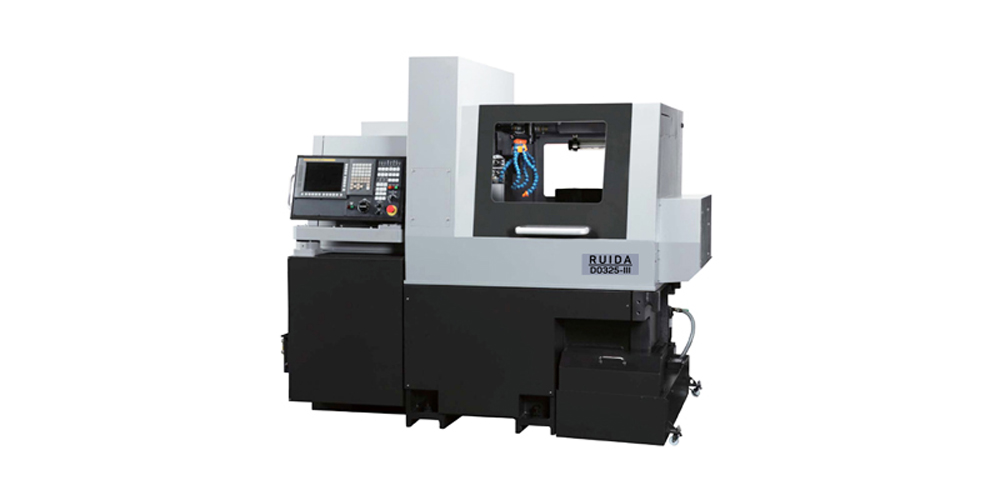

Versatile functions on the compact body. Enhanced variation and rich options cover diversified workpieces.

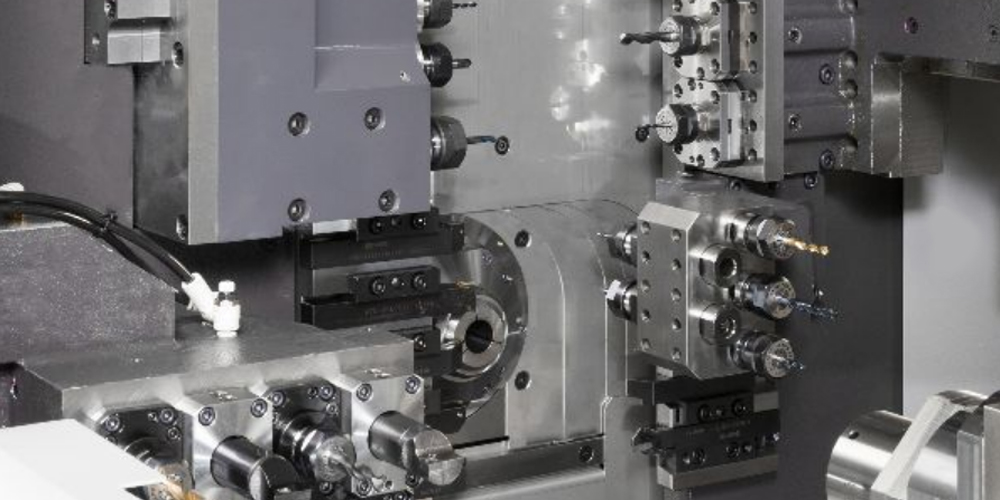

- Modular tooling enables optimal tool allocation (rear drive is an option)

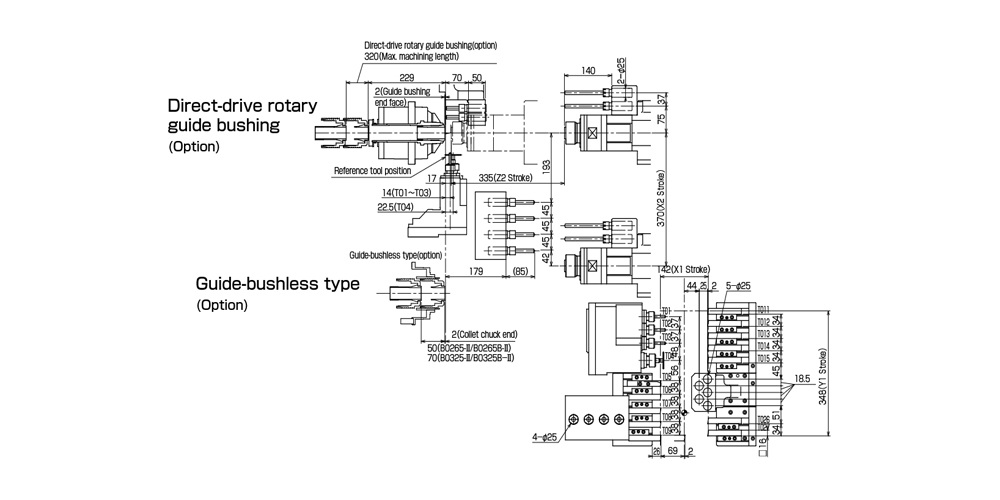

- Optional direct-drive guide bushing provides high-speed and accurate machining
- Guide-bush type or guide-bushless type is selectable according to the workpiece (option)
- Automatic programming software is provided as standard
- Thanks to the thermal displacement compensation, the long-term stable production is realized
- Enlarges the spindle ID, and bar end pre-turning is not necessary
Feature
|
Max. machining dia. |
Ø 32 mm |
|
Main spindle speed |
Max. 8 000 min-1 (Rated speed: 6 000 min-1) |
|
Back spindle speed |
Max. 8 000 min-1 (Rated speed: 7 000 min-1) |
|
Tool storage capacity (standard) |
32 |
|
Rapid traverse rate |

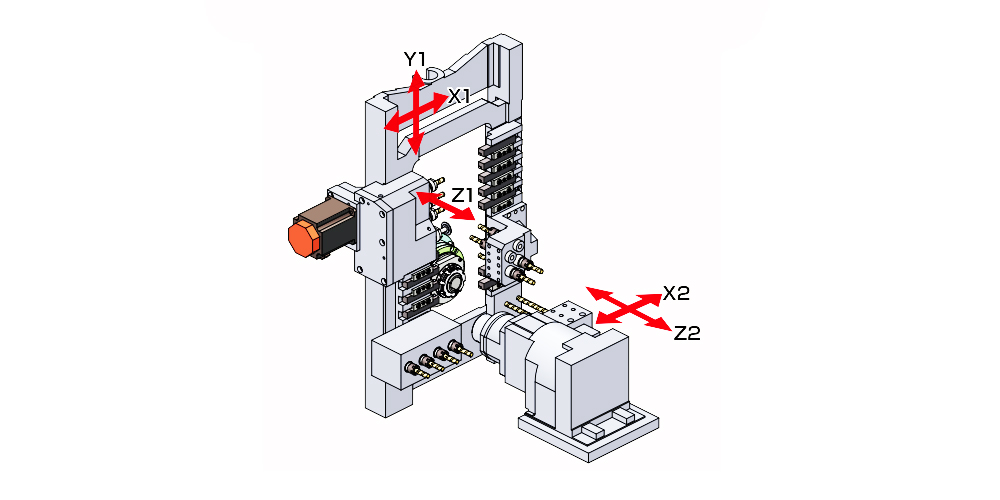

35 m/min (Z1/X2/Z2), 24 m/min (X1/Y1) |
|
Main spindle motor |
3.7 / 5.5 kW |
|
Back spindle motor |
3.7 / 5.5 kW |
|
Width x depth x Height |
2 630 x 1 270 x 1 970 mm |
|
Weight |
3 750 kg |
