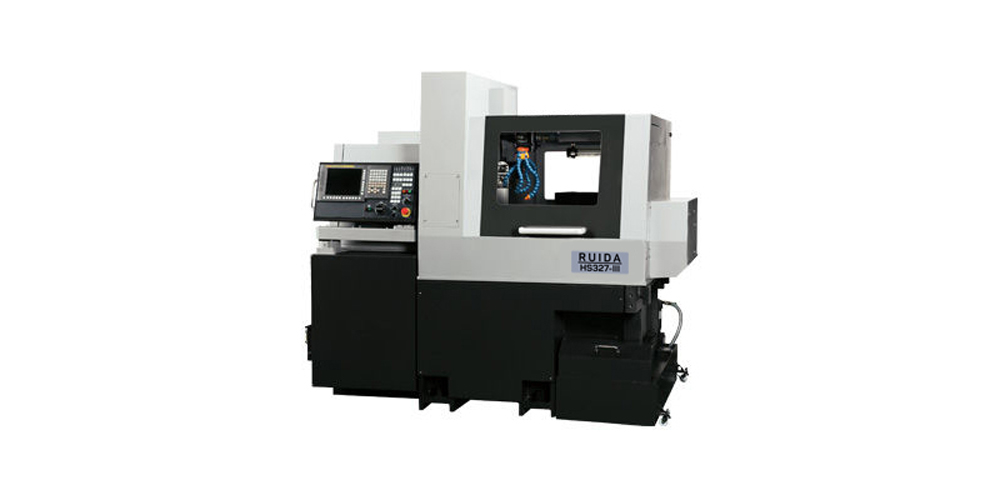

SWISS TURN equipped with B-axis enables advanced complex machining

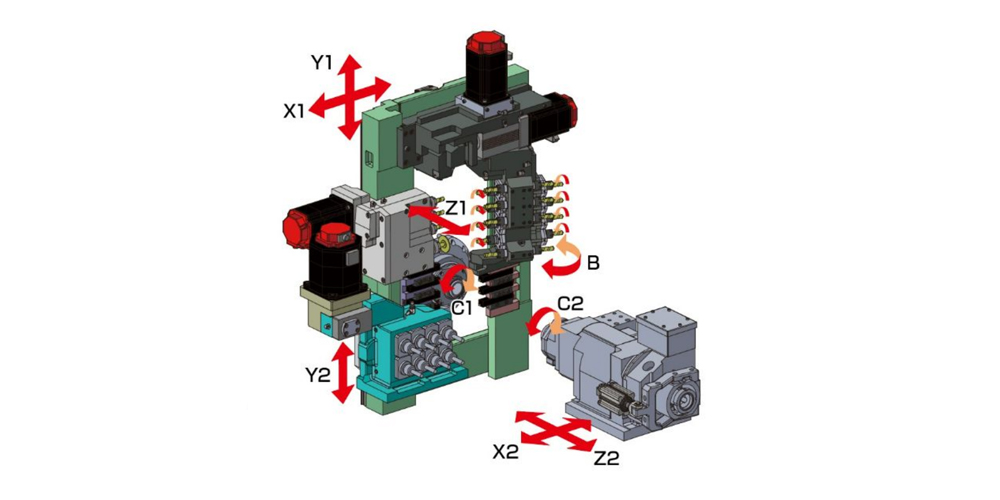

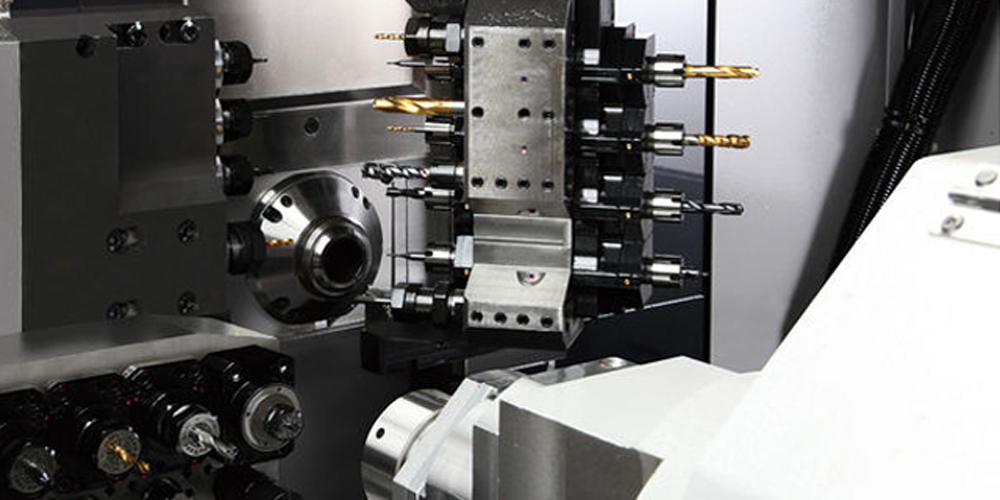

- Live tool of B-axis tool post can machine freely at any angle
- Live tool of B-axis tool post enables thread whirling and hobbing

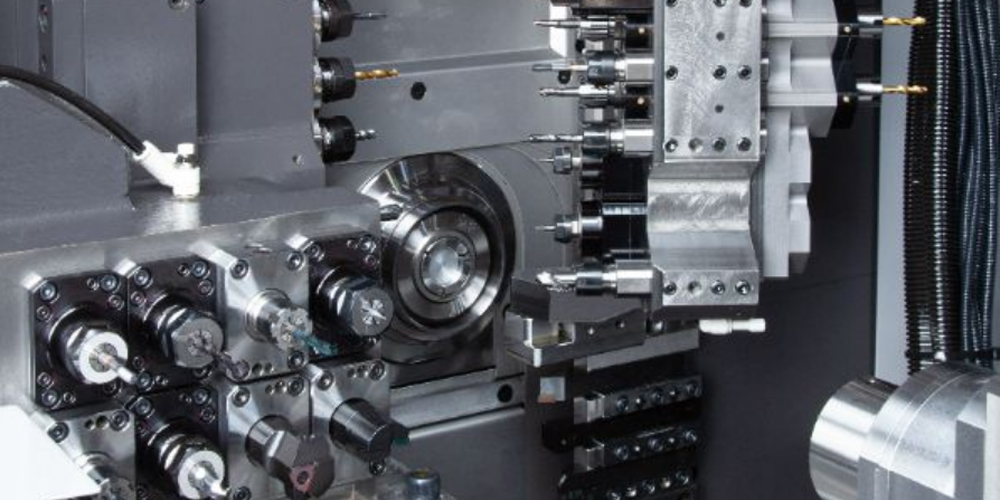

- Modular type B-axis tool post (option) allows whirling head or multiplied tool spindle to be installed
- Thanks to the thermal displacement compensation, the long-term stable production is realized
- Automatic programming software is provided as standard
Feature
|
Max. machining dia. |
Ø 32mm |
|
Main spindle speed |
Max. 8 000 min-1 (Rated speed: 6 000 min-1) |
|
Back spindle speed |
Max. 8 000 min-1 (Rated speed: 7 000 min-1) |
|
Tool storage capacity (standard) |
38 |
|
Rapid traverse rate |
35 m/min (Z1/X2/Z2), 24 m/min (X1/Y1/Y2) |
|
Main spindle motor |
3.7 / 5.5 kW |
|
Back spindle motor |
3.7 / 5.5 kW |
|
Width x depth x Height |
2 630 x 1 270 x 2 010 mm |
|
Weight |
4 000 kg |
