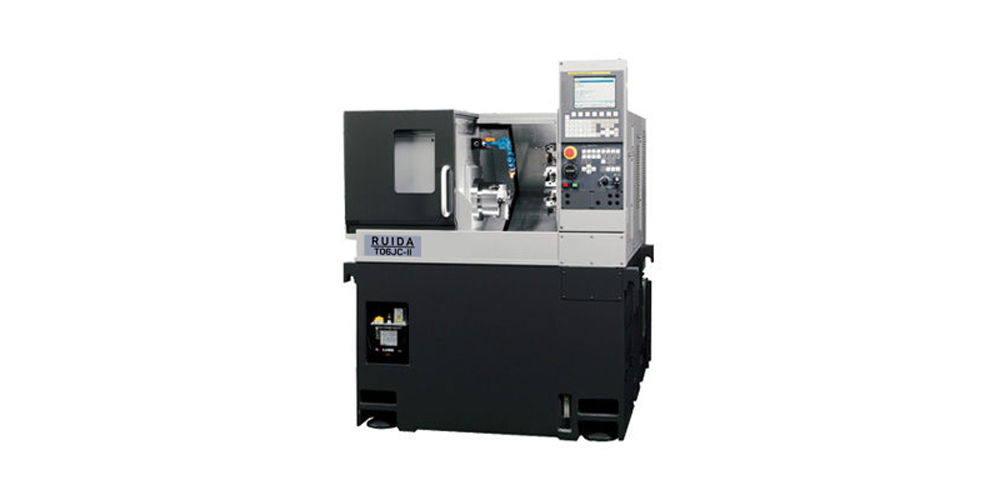

High-rigidity and high-productivity are realized by compact turning machine
- Compact machine with width 1265mm
- In addition, 1450mm height to the upper guard gives a clear view of the factory which makes operational supervision easier
- Great cutting capability realizes high productivity
- Programs can be created easily with on-board conversational programming software (FANUC: TURN MATE i) (Option)
- Minimizes the damage to the machine by abnormal load detection
- Safety setting up by interference prevention function
- Thanks to the thermal displacement compensation, the long-term stable production is realized.
Feature
|
Max. machining dia. |
Ø 220 mm / 42 mm (barstock) |
|
Max. machining length |
190 mm |
|
Spindle chuck size |
6 inch |
|
Spindle speed |
Max. 4 500 min-1 (Rated speed 4 000 min-1) |
|

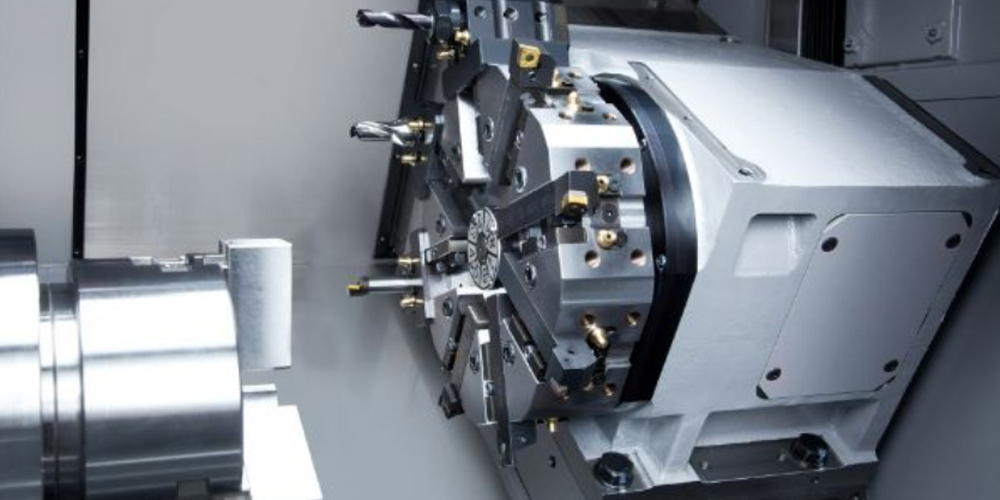

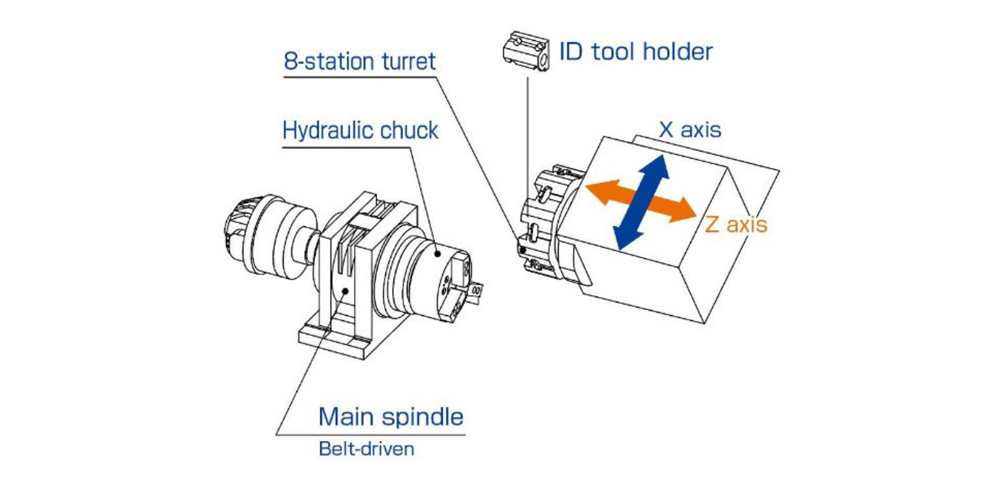

Number of turret stations |
8 |
|
Rapid traverse rate |
24 m/min |
|
Spindle motor |
5.5 / 7.5 kW |
|
Width x depth x Height |
1 265 x 1 560 x 1 650 mm |
|
Weight |
2 230 kg |
