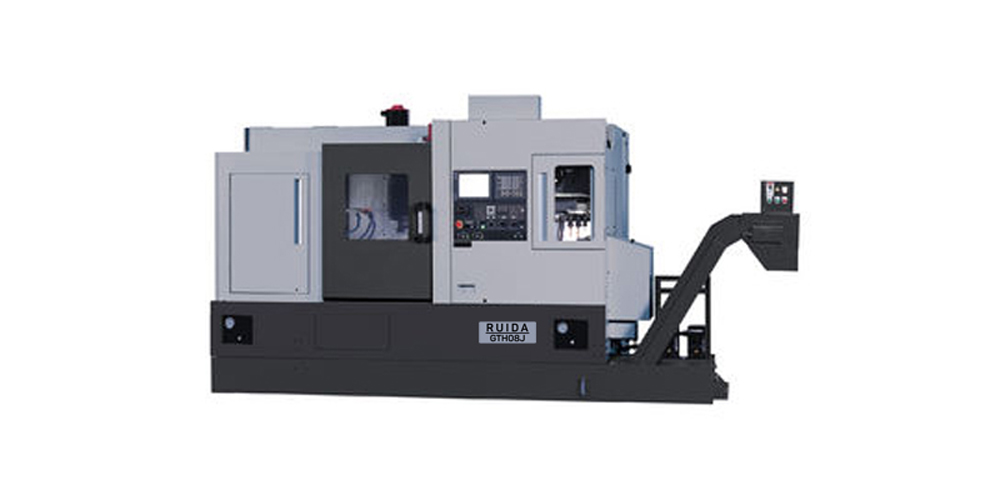

High-performance multi-tasking turning center

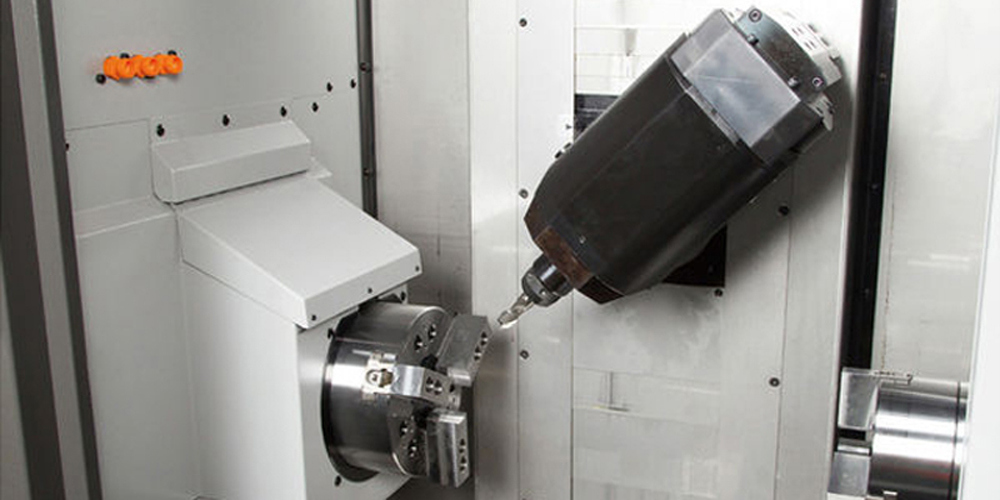

- High-speed tool spindle with max. 20,000 min-1 for high efficiency machining

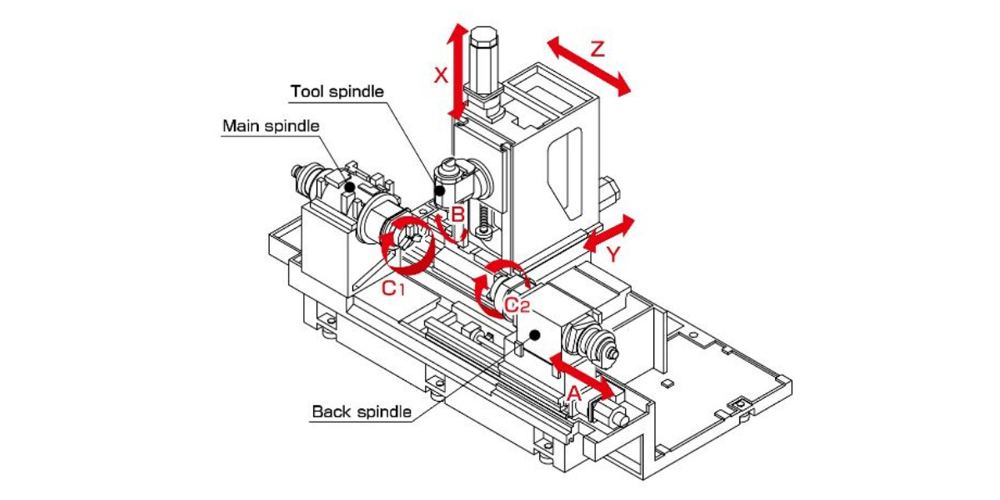

- Crossed at right angle slide construction assures high-accuracy complex machining and free-chip-flow

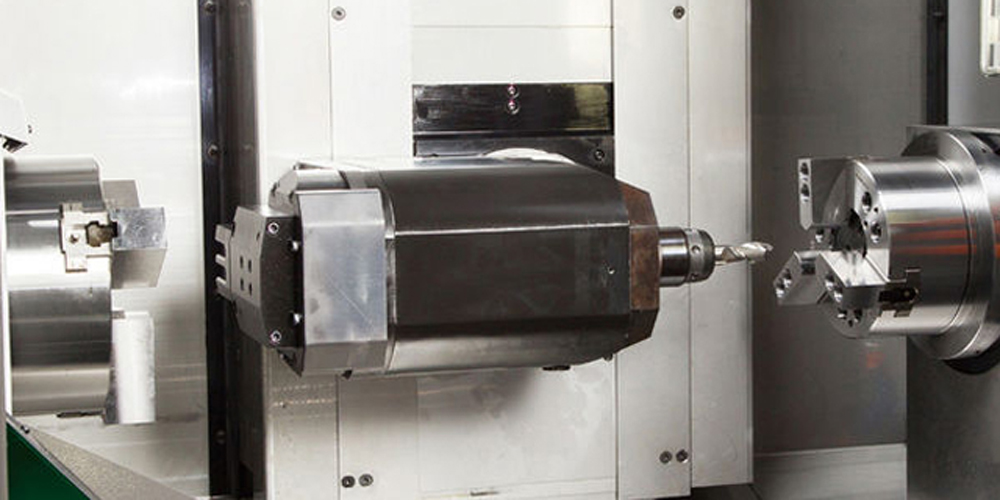

- Achieves 6-face machining with back spindle
- Ideal machine for a wide variety of products in small quantities of complex-shaped parts
- By process integration, reduces the number of operators and machines, and shortens the lead time
Feature
|
Max. machining dia. |
Ø 220 mm |
|
Main spindle chuck size |
8 inch |
|
Back spindle chuck size |
6 inch |
|
Main spindle speed |
Max. 5 000 min-1 (Rated speed 4 000 min-1) |
|
Back spindle speed |
Max. 5 000 min-1 (Rated speed 4 000 min-1) |
|
Tool spindle speed |
Max. 20 000 min-1 (Rated speed 15 000 min-1) |
|
B-axis index range |
-15 deg to 195 deg |
|
B-axis index angle |
0.001 deg (positioning) |
|
Tool storage capacity |
60 |
|
Tool shank configuration |
CAPTO C4 |
|
Rapid traverse rate |
30 m/min (X/A), 34 m/min (Y), 40 m/min (Z) |
|
Main spindle motor |
11 / 15 kW |
|
Back spindle motor |
5.5 / 11 kW |
|
Tool spindle motor |
5.5. / 11 kW |
|
Width x depth x Height |
3 600 x 2 126 x 2 250 mm |
|
Weight |
8 500 kg |
